Fan Model

CC9225M12S  PWM

Dimension

Ф 95*25 MM

Voltage

12V(10.8-13.2V)

Power consumption

DUTY CYCLE=100% 1.92W DUTY CYCLE=0% 0.48W

Rated current

DUTY CYCLE=100% 0.16±0.02A DUTY CYCLE=0% 0.04A±0.02A

Speed

DUTY CYCLE=100% 2400±10%RPM DUTY CYCLE=0% 1000±200RPM At 25℃,After 3~5 minutes rotating (Fan alone)

Air flow

DUTY CYCLE=100% 36.11CFM DUTY CYCLE=0% 13.65 CFM

Air Pressure

DUTY CYCLE=100% 4.25 mm-H2O DUTY CYCLE=0% 1.03 mm-H2O

Noise

DUTY CYCLE=100% 31dBA (max)

Bearing

Long Life Sleeve Bearing

Lead Wire

UL1061 26# L=200±10MM BLACK (-) YELLOW (+) GREEN (FG) BLUE （PWM)

Connector

2510-4PIN

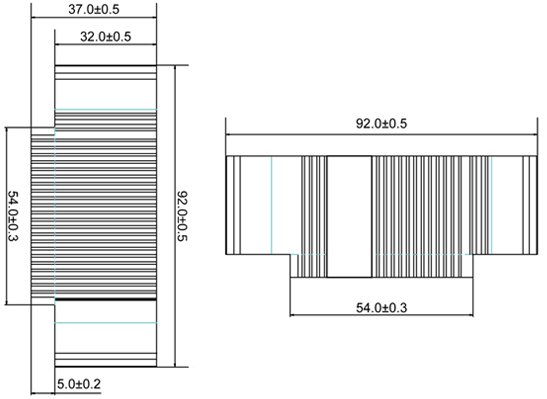

SIZE

93*92*37T

Material

Aluminum 6063

Color

Silver

DUTY CYCLE

SPEED (RPM)

RANGE

CURRENT(A)

0%

1000

± 200

0.04 ± 0.02

30%

1000

± 200

0.04 ± 0.02

70%

1000

± 200

0.04 ± 0.02

75%

1250

± 200

0.05 ± 0.02

80%

1500

± 240

0.06 ± 0.02

100%

2400

± 300

0.16 ± 0.02
