Cooler part No.

CC-HW21A

Dimension

Φ65*11 MM

Voltage

12V(10.8-13.2V)

Power consumption

DUTY CYCLE=100% 0.72W DUTY CYCLE=0% 0.24W

Rated current

DUTY CYCLE=100% 0.06±0.04A DUTY CYCLE=0% 0.02A±0.03A

Speed

DUTY CYCLE=100% 2,400±10%RPM DUTY CYCLE=0% 1,300±250RPM At 25℃,After 3~5 minutes rotating (Fan alone)

Air flow

DUTY CYCLE=100% 14CFM DUTY CYCLE=0% 7.5 CFM

Air Pressure

DUTY CYCLE=100% 1.5mm-H2O DUTY CYCLE=0% 0.6 mm-H2O

Noise

DUTY CYCLE=100% 26dBA (max)

Bearing

Hydraulic Bearing

Lead Wire

UL1061 36# L=100±10MM BLACK (-) RED (+) YELLOW (FG) BLUE (PWM)

Connector

2510-4PIN

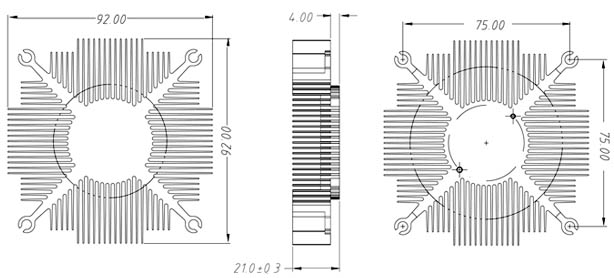

SIZE

92*92*21T

Material

Aluminum

Color

Black or Golden

DUTY CYCLE

SPEED (RPM)

RANGE

CURRENT(A)

0%

1300

± 250

0.02 ± 0.02

50%

1300

± 250

0.02 ± 0.02

70%

1800

± 250

0.04 ± 0.02

100%

2400

± 250

0.06 ± 0.02
